Electric Fencing: Deciphering the “Beeps” and Visual Indicators

Understanding your security system starts with knowing what it’s trying to tell you. One of the most common queries regarding electric fence energizers involves the diagnostic sounds and visual signals the unit makes.

• The Rapid Beep: This usually indicates a “Mains Fail.” Essentially, the unit is telling you it is no longer receiving power from the wall socket and is now running on its internal backup battery.

• The Constant Alarm: This occurs when the circuit is broken. For instance, if a wire is cut or a live wire is pushed against an earth wire, the internal relay is triggered.

• The Memory Light: If your Nemtek unit is flashing even though the fence seems fine, it is likely displaying “Alarm Memory.” This specifically means a fault occurred while you were away. To resolve this, simply reset the unit by cycling the power (Off then On) using your user PIN or magnetic tag.

Nemtek Electric Fence Light (Timed)

Regarding the Nemtek range, these lights are installed between the earth and live wires. How they work is quite clever: they use a timed flash frequency to show the voltage level.

• Furthermore, the diagnostic flashing provides instant feedback; a fast flash indicates high voltage (over 7.5kV), whereas a slower flash warns of a drop in voltage.

• In terms of design, it features a 160-degree viewing angle, which is intentionally shaped to shine back toward your house rather than the street, ensuring your security status isn’t advertised to outsiders.

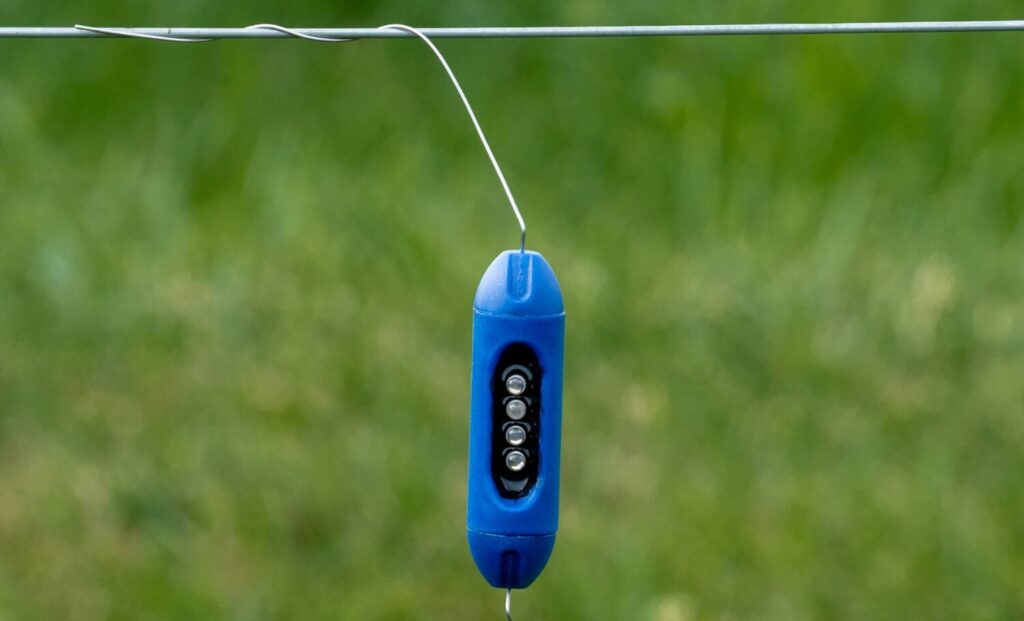

JVA Fence Light Pulsars

Alternatively, the JVA Pulsar is known for its extreme brightness. Utilizing seven high-intensity LEDs, these units are clearly visible even in broad daylight.

• In practice, it flashes with every pulse of the energizer. Consequently, if the light stops flashing, you know immediately that the fence is off or the voltage has dropped significantly.

• Additionally, because they are rugged and waterproof, they are ideal for mounting near gates so you can check the status from your vehicle as you drive in.

Dealing with Environmental Interference

Beyond technical faults, external factors like vegetation can cause issues. Specifically, when a wet leaf or branch touches a live wire, electricity “arcs” to reach the ground. As a result, you’ll hear a clicking sound and may experience false alarms.

The best solution for this is regular maintenance. To prevent arcing, ensure all vegetation is trimmed at least 15cm to 20cm away from the fence wires.

Surge Protection and Lightning Damage

Given that lightning is a major threat to energizers in South Africa, extra layers of defense are essential. While Nemtek units have internal protection, it is highly recommended to add the following:

• Lightning Diverters: An external diverter redirects the energy of a strike into the ground before it can reach the electronics.

• Earthing: A system is only as good as its earth. Therefore, multiple 1.2m earth spikes are required to ensure the energizer can deliver a shock and protect itself from surges.

Smart Integration and Monitoring

Finally, modern technology allows for much deeper control of your perimeter. For example, with Nemtek Connect, you can install a Wi-Fi or GSM module to receive push notifications and view real-time voltage on your smartphone.

Moreover, by using dry contact relays, the energizer can be wired into a standard home alarm system. Ultimately, this ensures your armed response company is notified the moment a breach is detected.
